EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified

  • EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified
  • EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified
  • EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified
Place of Origin CHINA
Brand Name CNSPORTS
Certification RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG
Model Number CN-S05T
Minimum Order Quantity /
Price US $8-20/ Square Meter
Packaging Details Pack in barrel /pallet
Delivery Time Within 15 work days after your deposit
Payment Terms L/C, T/T
Supply Ability 150000 tons Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Polyurethane Color Red/green/yellow/blue
Thickness 13mm Shock Absorption Rate 39.2%
Vertical Deformation 2.02mm Anti-slide Value 57
Tensile Strength 0.4mpa Tensile Elongation 46%
Flame Retardant Level I
High Light

EPDM Broadcasting Running Track

,

Permeable Synthetic Rubber Running Track

,

Iaaf Rubber Track
Leave a Message
Product Description

EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified

The product structure

EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified 0

Product Features

  • Environmental protection type products,with ventilation production;
  • Anti UV,not fade,not drop colloidal particles;
  • Strong wearresistance,strong weatherability,not easy to aging;
  • Elastic stability,no difference all the year round;
  • High shock absorption,make sure the athlete's comfort and safety;
  • Flatness meet the IAAF standards,nice filter water,no seeper phenomenon after raining；



Apply Occasion

Suitable for all schools,and the areas where temperature above-16 degree,does not apply to the alpine snow and ice areas.



Physical Properties Data

Serial
numbe		 Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified



Serial
number		 Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought



Qualified





Packing and Shipping

The rubber running track is packaged in rolls, with each roll measuring about 20 m in length and 1.5 m in width. The rolls are then packaged in cardboard boxes for shipping. The cardboard boxes are secured to ensure that the rubber running track is protected from any damage during transit.

The boxes are shipped to the customer's address via an appropriate delivery service. The customer is usually informed of the shipping details (tracking number, courier company name etc.) via email or phone. The customer can then track the package online or through the courier company.

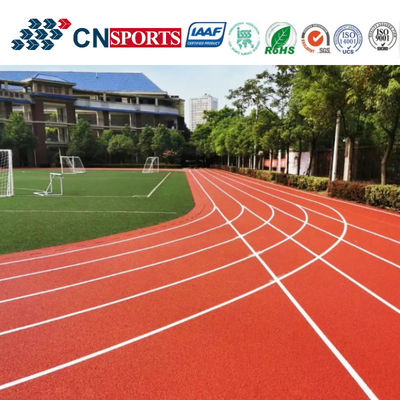

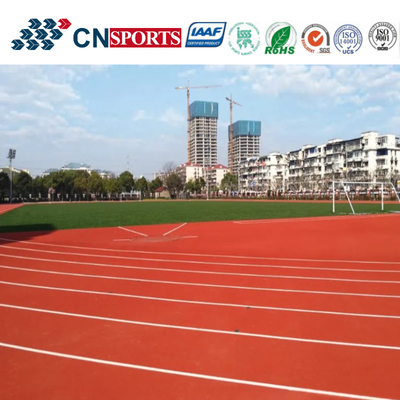

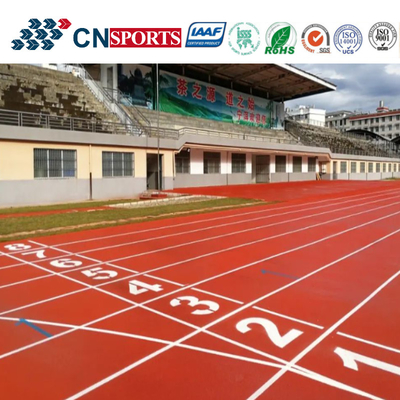

Picture for reference

EPDM Broadcasting Synthetic Rubber Permeable Type Running Track Iaaf Certified 1
