All Weather Artificial Surface Athletics Synthetic Running Track For Track And Field
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Athletic Track And Sports Field | Color | Red, Blue, Green, Yellow, Etc |
|---|---|---|---|
| Characteristic | PU Rubber Running Track | Use | Indoor And Outdoor |
| Thickness | 13mm, Or Customize | Material Package | In Drums And Bags |
| Shock Absorption | 35.5 | Vertical Deformation | 0.9mm |
| Tensile Strength | 0.8Mpa | Elongation At Break | 45% |
| High Light | Artificial Surface Athletics Synthetic Running Track,All Weather Synthetic Running Track,13mm Synthetic Athletic Track |
||
Product Description
All-Weather Artificial Runway Surface For Track And Field Athletics Synthetic Running Track
Synthetic Running Track Technical Data:
| Serial numbe |
Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Shock absorption rate,% | 30-50 | 38.9 | 39.2 | 39.3 | 40.1 | Qualified |
| 2 | Vertical deformation,mm | 0.6-2.5 | 1.74 | 2.02 | 2.40 | 2.4 | Qualified |
| 3 | Anti-slide value,BPN20℃≥ | 47 | 57 | 57 | 56 | 57 | Qualified |
| 4 | Tensile strength,Mpa ≥ | 0.5/0.4 permeable type | 0.8 | 0.4 | 0.62 | 0.51 | Qualified |
| 5 | Tensile elongation,% ≥ | 40 | 76.7 | 46 | 54.3 | 52.8 | Qualified |
| 6 | Flame retardant level | I | I | I | I | I | Qualified |
| 7 | Thickness,mm | 13 | 13.1 | 13.0 | 13.1 | 13.0 | Qualified |
| Serial number |
Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Benzene,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 2 | BTX,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 3 | Toluene diisocyanate,% ≤ | 0.2 | nought | nought | nought | nought | Qualified |
| 4 | Soluble heavy metal,mg/kg Pb ≤ | 90 | nought | nought | nought | nought | Qualified |
| 5 | Soluble heavy metal,mg/kg Cd ≤ | 10 | 2.4 | 2.0 | 1.9 | 2.8 | Qualified |
| 6 | Soluble heavy metal,mg/kg Cr ≤ | 10 | 3.2 | 3.1 | 3.4 | 3.4 | Qualified |
| 7 | Soluble heavy metal,mg/kg Hg ≤ | 2 | nought | nought | nought | nought | Qualified |
Synthetic Running Track Characteristic:
1. Environmental protection,non-toxic and pollution-free,certain friction coefficient;
2. High rebound value of elastic layer,protect athletes joint,reduce risk of ligament injury and improve the running speed of the athlete;
3. Excellent weather resistance,do not fade,powder,not become hard or soft because of UV,ozone,rainwater or weather change etc.
4. Excellent wear resistance,guarantee the stability of the appearance and the structure;
5. Nice weather resistance,can meet the needs of high-frequency use for long time;
6. Polyurethane Track and Field Surfaces effecient buffer rebound;
7. Durable performance for Track and Field Surfaces;
8. Truly healthy and environmental protection;
9. Construction is simple and convenient;
10. High wear-resistant and anti-spike High strength and high weather resistance polyurea material ,water absorption and solidification ,super wear-resistance,anti-spike,don’t fall off;
11. Bright and durable, Under the action of high anti ultraviolet performance ,the unique locking factor is stronger and more durable;
12.high UV resistance, The inherent anti ultraviolet particles double increase the anti-aging performance of the runway and prolong the service life of the runway Track and Field Surfaces;
13.no toxicity and no smell, Does not contain “Mocha”,chlorinated paraffin ,heavy metals and other carcinogenic substances,evironmental protection formula non-toxic tasteless;
14.water resistant and weather resistant. Since called “Universal paint”,the polyurea materials have excellent performance of water drought ,to ensure the runway’s quality lasting of stability;
15.high bond and high ductility. More than the bond strength of 2MPa,and more than doubled the elongation,ensure no delamination,no crack.
FAQ
Q1: Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.
For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.
Q2: What is the advantage of your factory? Why should I choose you?
Our products are odorless and non-toxic;
We have two main production bases and can make every kinds of SPU venues, running track,artificial grass,sports flooring construction and colloidal particles;
We have more than 20 years' development and production history;
Exceed ten million squre meters every year in the world.
Q3: What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

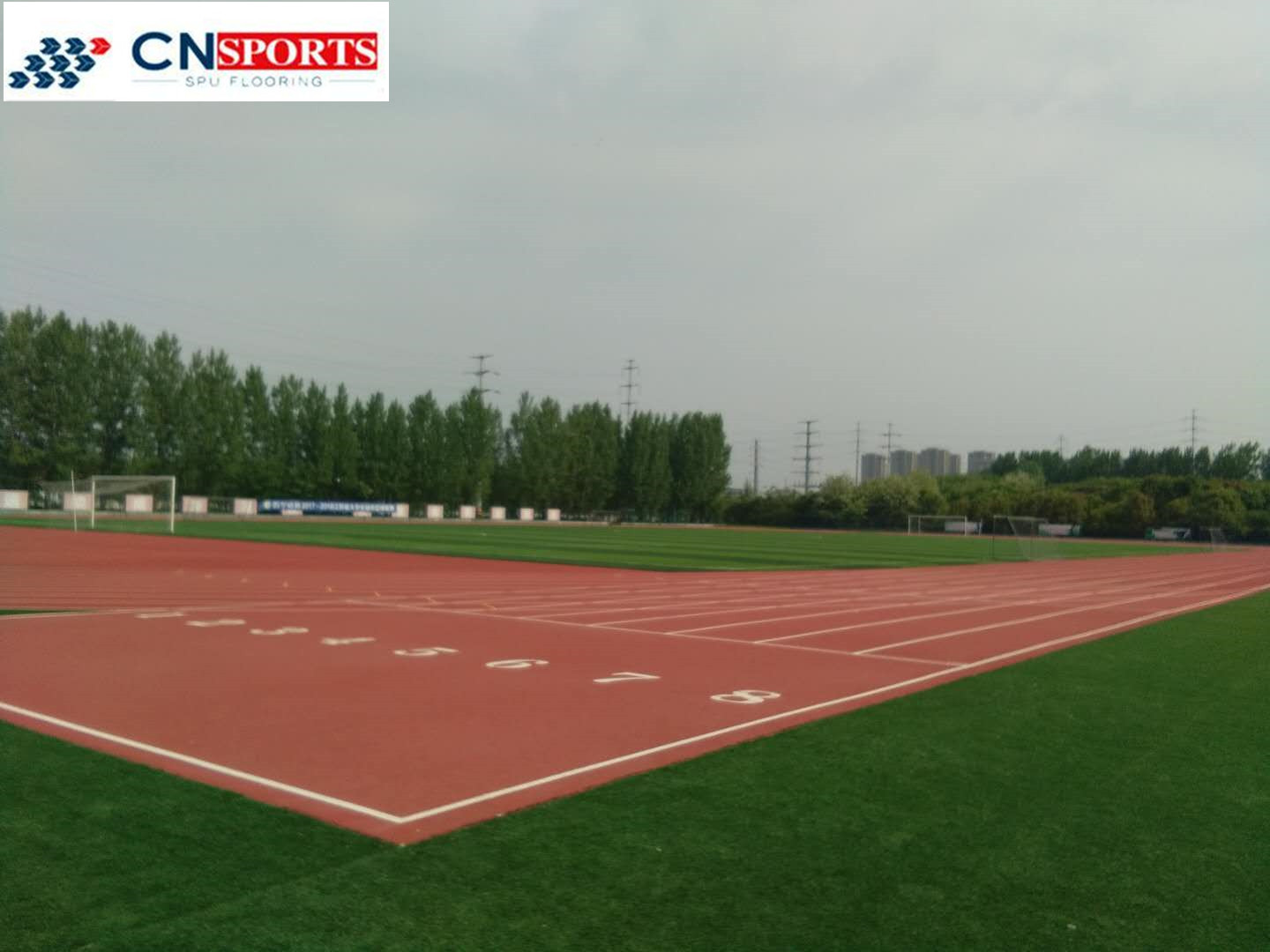

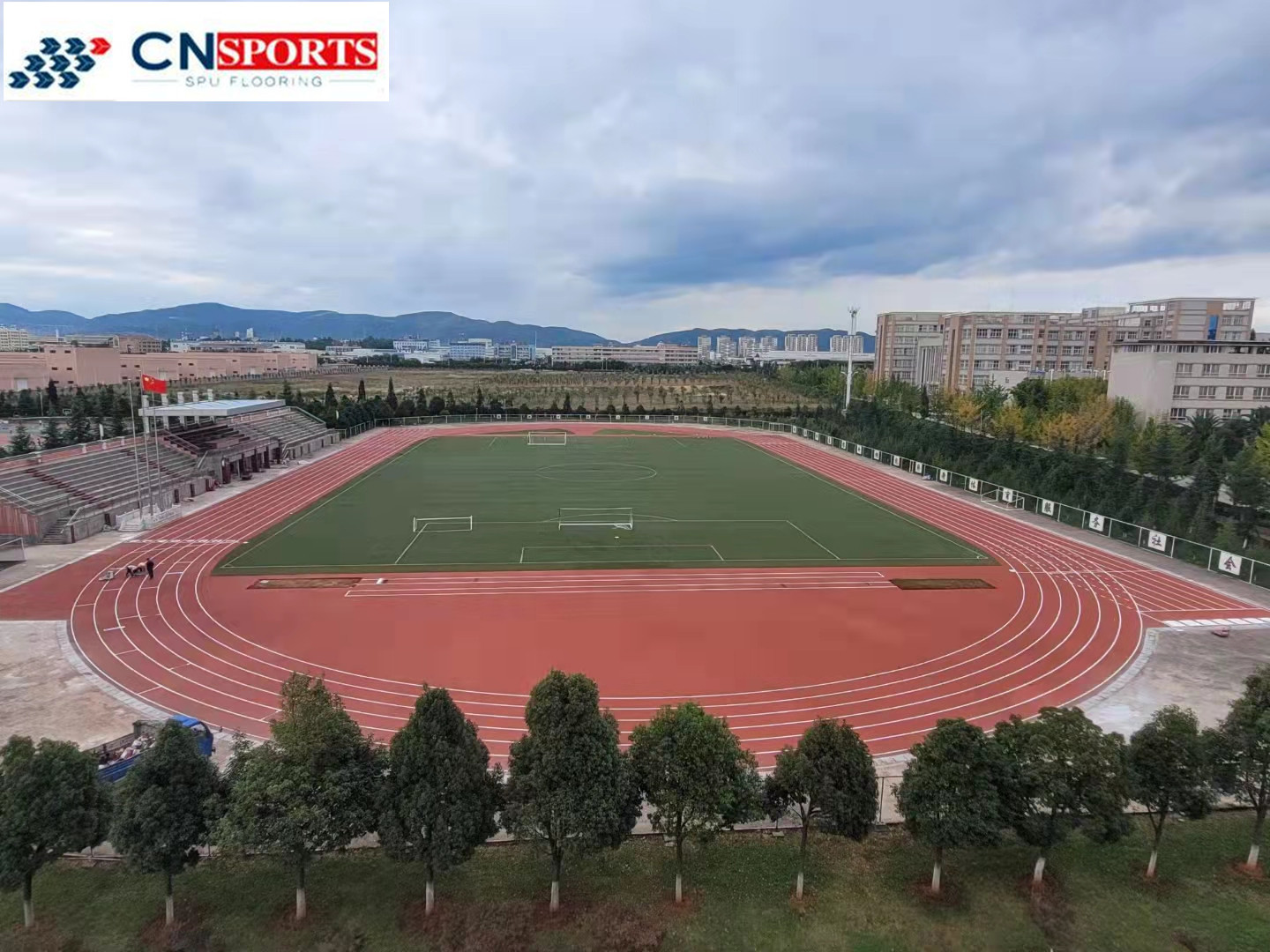

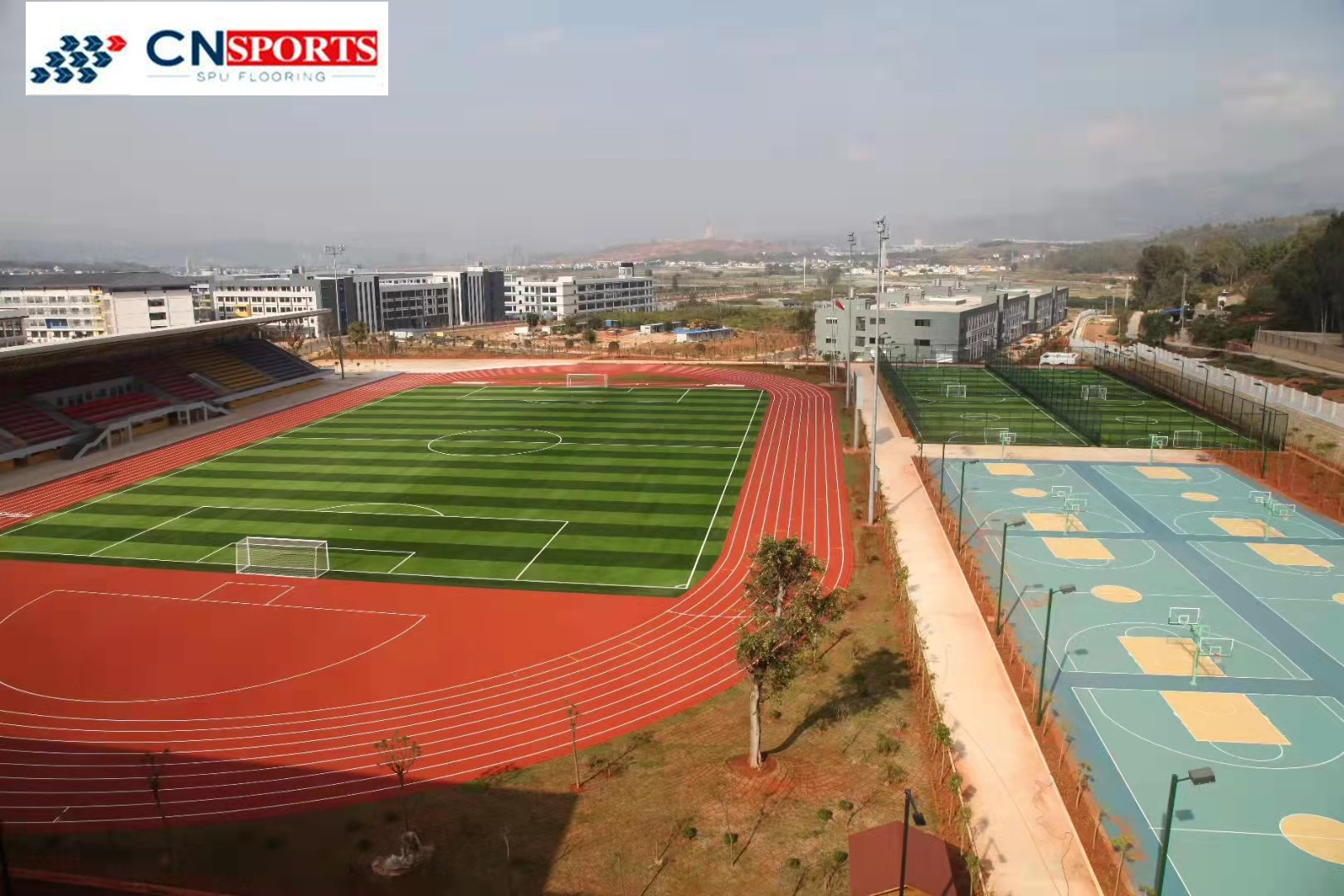

Project Cases:
