SPU Rubber Running Track Non Toxic 13mm Thickness

  • SPU Rubber Running Track Non Toxic 13mm Thickness
  • SPU Rubber Running Track Non Toxic 13mm Thickness
  • SPU Rubber Running Track Non Toxic 13mm Thickness
  • SPU Rubber Running Track Non Toxic 13mm Thickness
Place of Origin China
Brand Name CN Sports
Certification IAAF
Model Number CN-S03
Minimum Order Quantity 1000sqms
Price US$10-15/Square Meter
Packaging Details pack in barrel/pallet
Delivery Time in 7 working days
Payment Terms L/C, T/T
Supply Ability 100000Tons /Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 13 Shock Absorption,% 35.6
Vertical Deformation,mm 0.8mm Anti-slide Value 48
Tensile Strength,mpa 0.6 Elongation At Break,% 45
Color Red Survice Life 10Years
High Light

Non Toxic SPU Rubber Running Track

,

13mm Thickness Rubber Running Track

,

ITF Epdm Running Track
Leave a Message
Product Description

SPU Rubber Running Track Truly Healthy and Environmental Protection,non-toxic


Product Description



Excellent performance

It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer



No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified



No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought Qualified

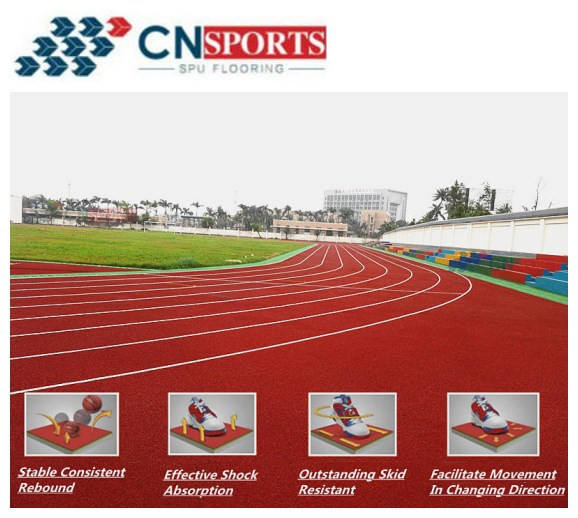

Advantages

1. Color EPDM surface, making it highly resistant to ultraviolet rays, no fade, strong wear,which are proved
2. The EPDM granules don't drop, mix the EPDM with polyurethane binder first,and then construct by mechanical spraying.
3. Excellent weather resistance, not aging.
4. Stable Elasticity all year around, so in winter is not hard and in summer it is not soft.
5. Strong Power for rotating and shock-absorbing,emphasizing on comfort and safety for athletes, and helps them improve the performance.
6. Stressed the the overall performance of truck, suitable for each game and long-term training.
7. The Marking line is not easy to peel off, bright color, do not fade, wear-resistance.
8. Flatness reach the IAAF standard, good water filters,there is no need to stop the game in light rain day.and the game can immediately begin after heavy rain,no ponding.
9. Professional production, process is simple and relatively short,beautiful color, clean and easy to maintain.



FAQ
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.

2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IFFF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

3. What is the installation method?
1) We can offer you installation instructions, you can fix by yourself.
2) We can arrange technical worker to teach you how to installation skill.
3) You can come to visit our factory to and learn from our technician.

SPU Rubber Running Track Non Toxic 13mm Thickness 0SPU Rubber Running Track Non Toxic 13mm Thickness 1

SPU Rubber Running Track Non Toxic 13mm Thickness 2

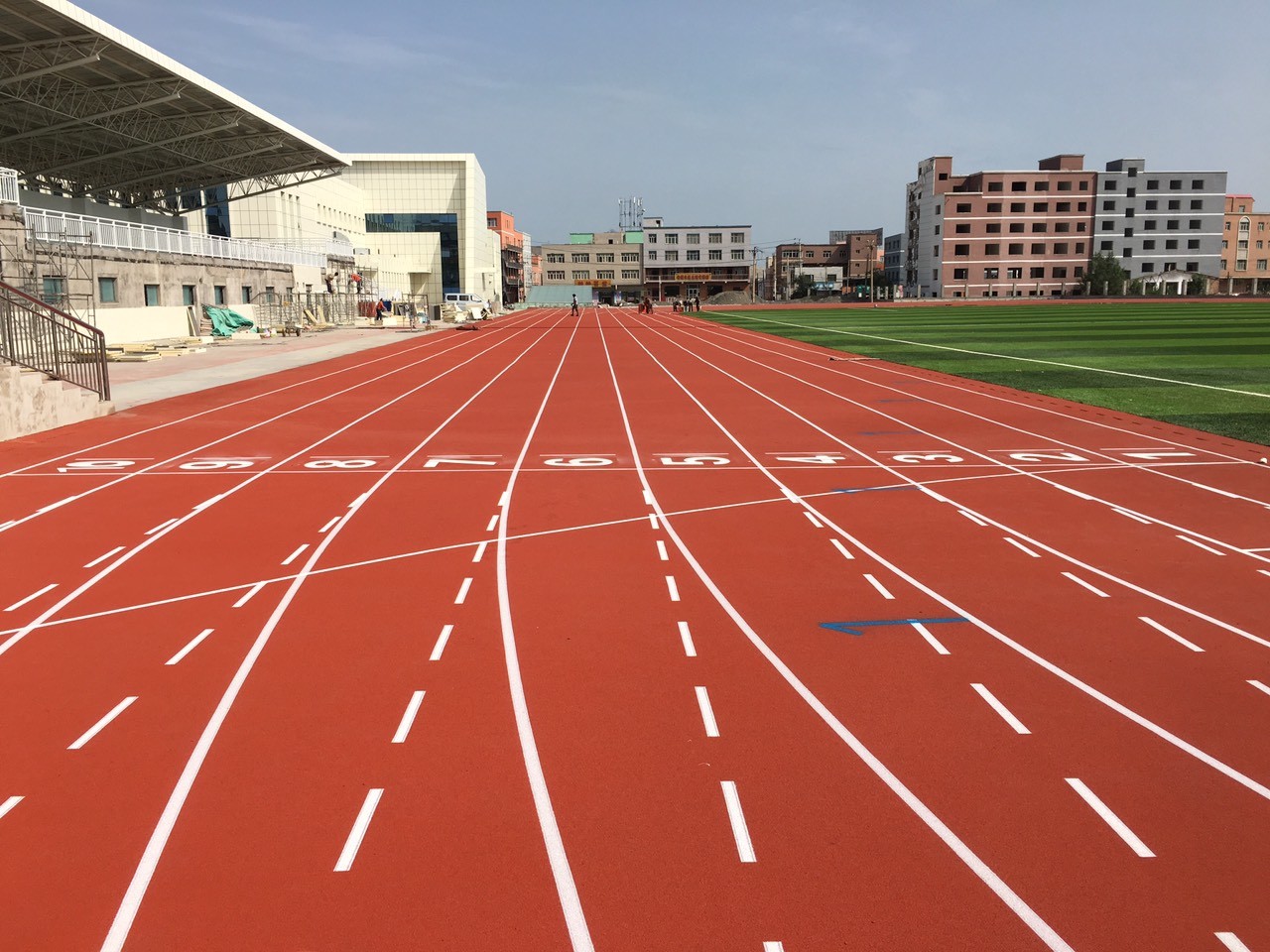

Project Case





SPU Rubber Running Track Non Toxic 13mm Thickness 3


SPU Rubber Running Track Non Toxic 13mm Thickness 4SPU Rubber Running Track Non Toxic 13mm Thickness 5SPU Rubber Running Track Non Toxic 13mm Thickness 6
