13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track

  • 13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
  • 13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
  • 13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
  • 13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
Place of Origin China
Brand Name CN Sports
Certification IAAF
Model Number CN-S05
Minimum Order Quantity /
Price US $10-30 Square Meter
Packaging Details Pack in Pallet/Bundles
Delivery Time in 7 working days
Payment Terms L/C, T/T
Supply Ability 200000 M2/ Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 13mm, Or Customize Certificates IAAF, CE, ROHS, Etc
Colour Red,Green,Blue Material PU, SBR, EPDM Granules
Life Span Over 10 Years Product Name Running Track, Athletic Rubber Running Track
Application Playground,sports Center,school,stadium Transport Package Barrels And Pallets
High Light

SGS Synthetic Artificial Grass

,

Field Green Synthetic Artificial Grass

,

Polyethylene artificial turf landscaping
Leave a Message
Product Description

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track



Excellent performance

It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer





Physical properties data

No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified



No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought Qualified





Different system for charateristics:

Spray coating:Price competitive , permeable and surface paint by machine, more suitable for school or practice project
Sandwich sytem: EPDM broad be handwork,is professional than spray coat,most pouplar in the world market.
Full pour System: Best quality, bottom layer is PU with less sbr granules mix. Suitable for professional games and international school.





FAQ
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo.

2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

3. What is the installation method?
1) We can offer you installation instructions, you can fix by yourself.
2) You can come to visit our factory to and learn from our technician.



3. What are the options for the base construction of a running track?
Based on asphalt or concrete.

4. What is the life Span for Running track?
10-15years.





Project cases for reference:

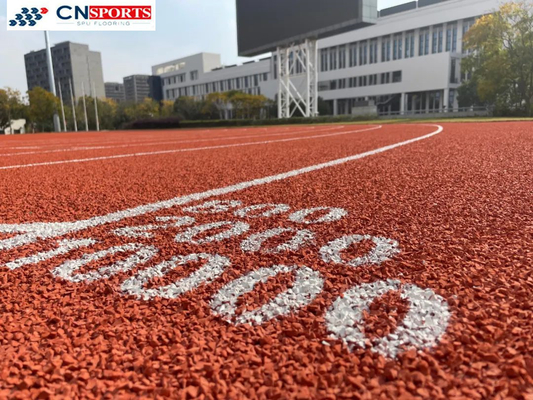

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track 0

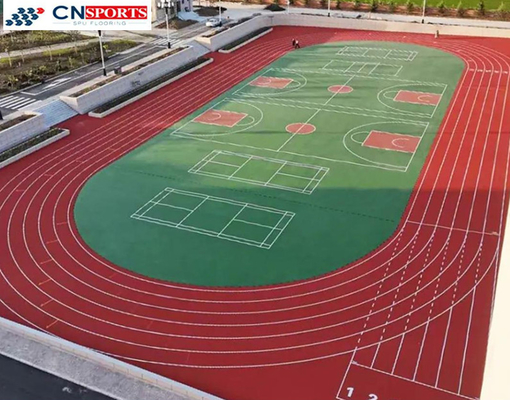

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track 1

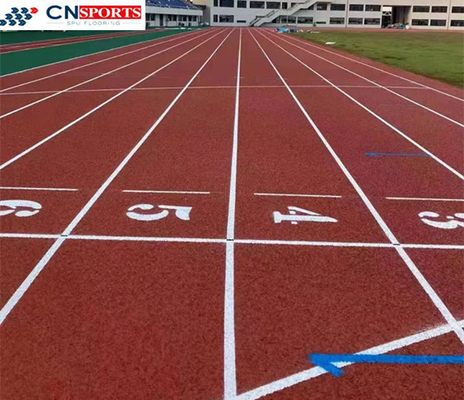

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track 2
