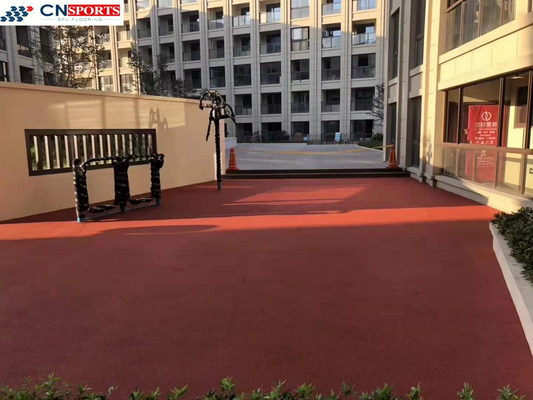

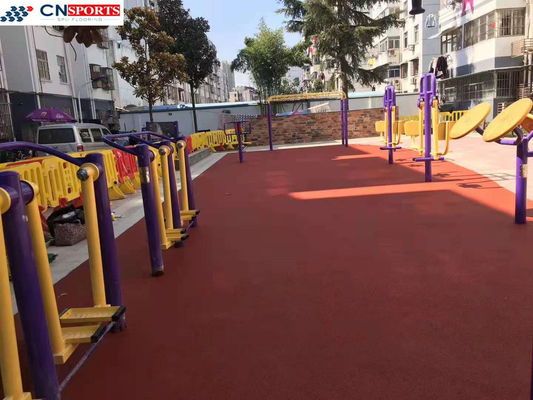

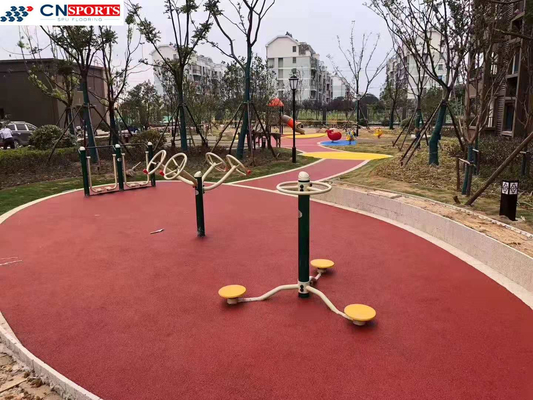

Colorful Playground Walk Path EPDM Rubber Flooring High Elasticity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | EPDM Flooring, EPDM Rubber Flooring, EPDM Granules Flooring | Product Structure | EPDM Mix With PU Binder And Pave On Ground |
|---|---|---|---|
| Application： | Jogging Track, Fitness Field, Exercise Field, Sports And Play Ground | Feature | High Elasticity, Anti UV, Anti-fading, Etc |
| Function | Safety Protection, Flooring Decoration,anti-slip | Material | PU Binder, EPDM Granules |
| Structure | PU Binder Mix With EPDM | Transport Packages | 25kg/Bags, 40bags/pallets |
| High Light | RoHS EPDM Rubber Flooring,Walk Path EPDM Rubber Flooring,High elasticity epdm granules flooring |
||
Product Description
EPDM Granules Rubber Flooring for Jogging Track Playground Walk Path Flooring
Company Brief Introduction:
We are first class one stop material supplier in China for high quality sports matrials,such as SPU course , running track , artificial grass, rubber particles and we are also engaging in the construction of sports venues.
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.
Our advantages (Why choose us?)
- Our products are odorless and non-toxic.
- We have two main production bases and can make every kinds of SPU venues, running track, artificial grass, sports flooring construction and colloidal particles.
- We have more than 20 years' development and production history.
- Exceed ten million squre meters every year in the world.
Features:
Good color fastness ,High elasticity and wear resisitance,.Acid aAlkali Resistance ,Aging resistance ,UV resistance properties. Low density for excellent coverage Excellent features for wet poured playgrounds.
Characteristics for PU Binder EPDM flooring from CN Sports:
1) It can lay on both concrete and asphalt substrate.
2) Excellent wear resistance.
3) High elastic wear resistance, skid resistance, bright colors.
4) Suitable for all weathers, UV resistant, color lasting, durable.
5) Short construction period, Low cost, easy maintenance
6) Excellent weather-ability, maintain high level performance no matter in weather.
7) High Elastic, moderate elastic, suitable for all kinds of ball games.
Installation steps:
1. Clean the site and keep it clean
2. Evenly paint the site with a special environmental protection primer roller
3. Stir the particles and glue evenly at a ratio of 5:1
4. Spread the evenly stirred particles to a little thicker on the site
5. Use cement trowel to flatten and compact the particles
Detailed specification of product
Physical Properties Data
| Serial number | Test project | Standard requirements | Test results | Judge |
| 1 | Compression recovery rate, % | ≥ 90 | 98.5 | Qualified |
| 2 | The springback value, mm | ≥ 20 | 26 | Qualified |
| 3 | Hardness | 30-50 | 47 | Qualified |
| 4 | The tensile strength, Mpa | ≥ 0.5 | 1.74 | Qualified |
| 5 | Tensile elongation, % | ≥ 90 | 103.6 | Qualified |
| 6 | Flame retardant level | I | I | Qualified |
The harmful and toxic substances limits standard of the products
| Serial number | Test project | Standard requirements | Test results | Judge | |
| 1 | Benzene, g/kg | ≤0.05 | nought | Qualified | |
| 2 | BTX, g/kg | ≤0.05 | nought | Qualified | |
| 3 | Toluene diisocyanate,% | ≤0.2 | nought | Qualified | |
| 4 | Soluble heavy metal mg/kg | Pb | ≤90 | nought | Qualified |
| Cd | ≤10 | 2.7 | Qualified | ||
| Cr | ≤10 | 3.5 | Qualified | ||
| Hg | ≤2 | nought | Qualified | ||
Product specification
Raw material: Supreme EPDM and other components
Rubber granule content : 14%, 20%, 22%, 25%, 35%, 40% etc. can customize
Standard Sizes of EPDM granule
0.5 - 1.5 mm
1.0 - 2.0 mm
1.0 - 2.5 mm
1.0 - 4.0 mm
1.0 - 3.5 mm
0.5 - 2.0 mm (mainly for Infill)
0.5 - 2.5 mm (mainly for Infill)
Special sizes and colours are also available to meet customer specifications
Special applications
Golf Walkways and Driving Ranges
Swimming pools (Inside and Surrounding)
Ship Deckings
Commercial Flooring
Sports Stadia (Club Colours can be matched)
Golf Walkways and Driving Ranges
Swimming pools (Inside and Surrounding)
Ship Deckings
Commercial Flooring
Sports Stadia (Club Colours can be matched)
Product Packing and Shipping details:
* PU binder:
20 ft container =14 tons, 70 big drums(1drum =200kg)
20 ft container =19.2tons, 960 small drums(1drum= 20kg)
* EPDM rubber granules:
20 ft container =20 tons, 800bags (25kg/bag)
Product Delivery Time: 7 - 10 days
FAQ
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo.
2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,ISO9001,IAAF and ISO14001,SGS, ASG,etc and can export our products all over the world.
3. What is the installation method?
We can offer you installation instructions, you can fix by yourself.
4. Can we get installation support?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.
OUR TRAINNING AND SERVICES:
- Provide construction guidance process text information
- Provide construction process video
- Can send person to our factory for training and studying
- We can also arrange the engineer to the site for training and guidance
- 24hours of telephone consultation service
- Regular understanding the situation of the site usage
