Silicon PU Tennis Court Flooring Flame Retardancy Level1 Resilient
| Place of Origin | China |
|---|---|
| Brand Name | CN Sports |
| Certification | ITF/RoHS/ISO140019001/ISO14001/ISSS |
| Model Number | CN-S02 |
| Minimum Order Quantity | / |
| Price | US$10-35/square meter |
| Packaging Details | Pack in barrel/pallet |
| Delivery Time | Within 15 work days after your deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000Tons per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicon Polyurea | Application | Outdoor School Stadiums And Gymnasiums |
|---|---|---|---|
| Color | Red Or You Can Customize | Warranty | 5 Years |
| Function | Anti-seepage,waterproof And High Rebound ,anti-uv | Vertical Deformation | 0.9mm |
| Tensile Elongation | 153 | The Springback Value | 20 |
| High Light | Silicon PU Tennis Court Flooring,Flame Retardancy Level1 Tennis Court Flooring |
||
Product Description
Flame Retardancy Level1 Silicon PU Tennis Flooring and Resilient 26 Springback Value
Product Description
About Tennis Court
SPU acrylic tennis court system uses modified tenacious acrylic resin as the abrasion resistant layer. It’s a
breakthrough for the brittleness and fissility shortcomings of the traditional acrylic material.
Polymer compound material supports the surface layer well and its excellent ductility plays an effective role in
dynamic anti-crack performance.
Then it combines with the permeation-type primer to form an integral rebound structure that has high
adhesion and weatherability.
The prime coat isolates moisture underground and the layer has effective anti-seepage. Thus, all these
ensure the floor durable.
The launch of SPU Tennis Court System is a complement to the shortcoming of the hard acrylic tennis court.
Especially the sport protection which is provided by its resilience, it solves the sport harm to the athletes
caused by the hard ground. At the same time, it further makes the ground provide more professional sport
feeling for matches.
Sports Performance Data
| NO. | items | index of standard | results |
| 1 | value of rebound, % | ≥ 80 | 88 |
| 2 | impact absorption, % | 5~15 | 9 |
| 3 | Slid friction, N | 60~100 | 76 |
| 4 | Water permeability, mm/min | 0 | 0 |
Pysical Properties Data
| NO. | items | index of standard | results |
| 1 | Elongation at break, % | ≥ 400 | 857 |
| 2 | tensile strength, MPa | ≥ 1.8 | 3.2 |
| 3 | artificial weathering ageing resistance d(300h) |
No bubble, no peeling, no crack; Powder ≤ 1 grade, △ E ≤ 5.0 |
No bubble, no peeling, no crack; Powder ≤ 1 grade, △ E=0.9 |
| 4 | Elongation at break, % | ≥ 300 | 858 |
| 5 | tensile strength, MPa | ≥ 1.3 | 1.6 |
| 6 | wearability(750g/500r)/g | ≤ 0.050 | 0.035 |
| 7 | water resistance |
No bubble, no peeling, allows slight discoloration, recover after 2h |
No bubble, no peeling, no discoloration |
| 8 | Flame retardancy, class | I | I |
Factory Panorama

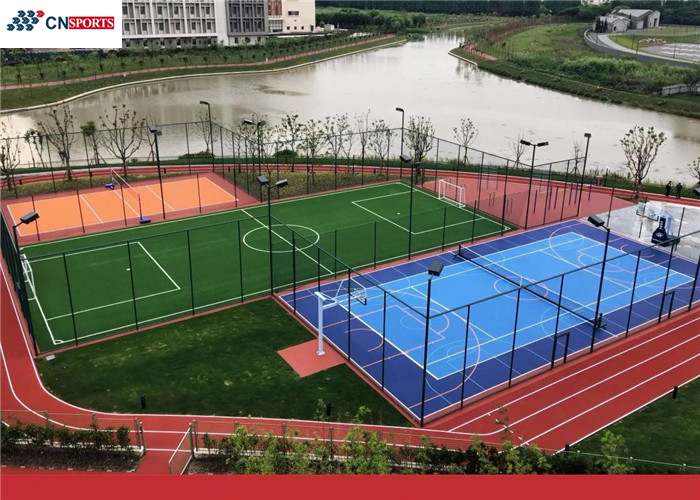

Project Case
What is SPU?
SPU sports flooring is made by silicon PU / silicon polyurethane materials. It has been implemented for the past 10 years and created a classic name for sports flooring. It is widely used for sports flooring and playground field, especially for outdoor fields.
It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer
combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt
substrates. The cushion layer is formed by single component modified polyurethane and top up with two
component modified acrylic resilience layer.
Detailed specification of product
Standard of Sports Performance
| Item | test project | technical requirements | test results |
| 1 | Shock absorption rate (%) | Fr≥12 | 21 |
| 2 | The springback value(%) | ≥20 | 30 |
| 3 | Sliding friction coefficient | 0.4≤u≤0.7 | 0.53 |
| 4 | Compression recovery rate(%) | ≥95 | 97 |
| 5 | Hardness(Shore A),20℃ | 60-80 | 68 |
| Item | test project | technical requirements | test results | |
| 1 | Volatile organic compounds(VOC)(g/L) | ≤670 | 91 | |
| 2 | benzene(%) | ≤0.3 | Did not check out | |
| 3 | Toluene ＋xylene＋ ethyl benzene(%) | ≤30 | 5 | |
| 4 | The free diisocyanate(TDI＋HDI)(%) | ≤0.4 | Did not check out | |
| 5 | Halogenated hydrocarbon(%) | ≤0.1 | Did not check out | |
| 6 |
Soluble heavy metals(mg/kg) |
plumbum Pb | ≤90 | Did not check out |
| Cadmium Cd | ≤75 | Did not check out | ||
| chromium Cr | ≤60 | Did not check out | ||
| mercury Hg | ≤60 | Did not check out | ||
Technical data for SPU Sports Flooring
| Item | test project | technical requirements | test results | |
| 1 | Tensile elogation,% | ≥400 | 1112 | |
| 2 | The tensile strength,Mpa | ≥1.8 | 3.5 | |
| 3 | Artificial climate ageing resistance(300h) No bubbles, no peeling, no crack； | pulverization≤grade 1,△E≤6.0 | No bubbles, no peeling, no crack； pulverization＝grade 0,△E＝0.57 | |
| 4 | Wear resistance(750g/500r),g | ≤0.050 | 0.031 | |
| 5 | Durability, aging experiment(168h) | Tensile elongation,% | ≥300 | 853 |
| The tensile strength,Mpa | ≥1.3 | 1.6 | ||
| 6 |
Resistance to water(168h)
|
No bubbles, no peeling, allowing a slight color change,recovery after 2h | No bubbles, no peeling, no discoloration | |
| 7 | Flame retardant level | I | I | |
Environmental Performance Standard
Based on considerations of social environmental security responsibility
Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.
Standard Testing Result of SPU
Durable Performance Standard
Based on the owner or operator, construction and maintenance
Reflect the quality level of the site, and durable time limit
