CN-S01 Waterproof and High Rebound and Soundproof and level1 Flame Retardancy silicon PU Flooring

Place of Origin China
Brand Name CN Sports
Certification ITF/RoHS/ISO140019001/ISO14001/ISSS
Model Number CN-S02
Minimum Order Quantity /
Price US$10-35/square meter
Packaging Details Pack in barrel/pallet
Delivery Time Within 15 work days after your deposit
Payment Terms L/C, T/T
Supply Ability 100000Tons per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicon Polyurea Application Outdoor School Stadiums And Gymnasiums
Warranty 5 Years Color Red Or You Can Customize
Flame Retardancy Class 1 Tensile Strength 3mpa
Wearability 0.047 Elongation At Break 842
Leave a Message
Product Description

CN-S01 Waterproof and High Rebound and Soundproof and level1 Flame Retardancy silicon PU Flooring



Product Description





Excellent Performance



1· Buffering effect given by resilience protects the athletes’ joints and reduces sport injury.
2· The surface layer of acrylic cushion provides certain protection to accidental falls in sports.
3· The tennis court with buffering effect has a longer sport life.
4· The resilient tennis courts provide more stable ball speed and ball direction. The sport felling is better.
5· The surface layer of the acrylic cushion tennis court provides more comfortable sporting texture when athletes are
starting, stopping abruptly or sliding.






Pysical Properties Data



NO. items index of standard results
1 Tensile elongation, % ≥400 857
2 Tensile strength, MPa ≥1.8 3.2
3 artificial weathering ageing resistance d(300h) No bubble, no peeling, no crack; Powder ≤grade 1, △E≤5.0 No bubble, no peeling, no crack; Powder ≤grade 1, △E=0.9
4 Durability, aging test (168h) Tensile elongation, % ≥300 858
    tensile strength, MPa ≥1.3 1.6
5 wearability(750g/500r)/g ≤0.050 0.035
6

water resistance



No bubble, no peeling, allows slight discoloration, recover after 2h No bubble, no peeling, no discoloration
7 Flame retardancy, class





Sports Performance Data



NO. items index of standard results
1 value of rebound, % ≥80 88
2 impact absorption 5~15 9
3 Slid friction, N 60~100 76
4 Water permeability, mm/min 0 0







Health and Environmental Properties Data



NO. items index of standard results
1 volatile organic compound content (VOC) (g/l) ≤670 104
2 Benzene (%) ≤0.3 nought
3 Toluene+ Ethylbenzene+ Xylenes (%) ≤30 2
4 Free diisocyanate (TDI+HDI) (%) ≤0.4 nought
5 halogenated halohydrocarbon (%) (Dichloromethane, 1.1 - dichloro ethane, 1 dichloro ethane, chloroform, 1.1.1- of three chlorine ethane, 1.1.2- three chlorine of ethane and carbon tetrachloride), (%)

≤0.1



nought
6 Soluble Heavy Metal (mg/kg) Pb ≤90 nought
Cd ≤75 nought
Cr ≤60 nought
Hg ≤60 nought





The performance comparison of different Acrylic tennis courts materials



Pavement materials Base requirements Competition performance Environmental performance durability Usage limits
SPU material Both cement and asphalt base The hard upper and resilient under structure is special for tennis. The low modulus cushion layer at the bottom plays the most appropriate buffer effect. The high modulus strengthen layer in the middle provides sufficient compression rebound. The tenacity hard surface provides superior sport texture. The whole system ensures the tennis court has effective buffer, slip resistance to starting, moving and rebound performance.

Environmental.

The product implements strictly the latest State Mandatory Standards of Indoor Decorating and Renovating Material and qualified in ‘China Environmental Label (type) by China's Ministry of Environmental Protection

The base coat and the cushion layer is airtight to isolate the underground moisture and prevent bubbling. The high extensibility prevent the tiny crack caused by deformation of the cement base. The surface is wearable, scratch-resistant, and uvioresistan. It is non-aging, color lasting and not easy to sand-out. Renovations, changing color or line are convenient. It is suitable for both indoor and outdoor and not affected by any climate in principle. After rain, it just needs to clean the water on the surface and then put into use.
The traditional acrylic material Asphalt base only The new tennis courts have good sport texture in early stage. It is comfortable to start and the friction is stable. But the buffer absorption effect is bad. It has low resilience and lacks enough sport protection. The old one gets to harden and easy to cause injury to the athletes’ joints. The sand consolidation effectiveness is worse. It sand-out easily and get to be smooth. Environmental, odorless and non-toxic Water resistance is not good. Low strength durability. Easy to sand-out. Low color durability. Need roll-coating renovation frequently to keep competition performance. The base material has low strengthen and easy to aging and harden. It is easy to conduct cracks on the surface. The low-priced products blend much more filler. Quality and performance change apparently. Suitable for both indoor and outdoor. Dark soles are easy to produce friction marks on the surface. It is not easy to clear. Only if it is dry thoroughly can put into use. Otherwise, it is easy to damage the site.

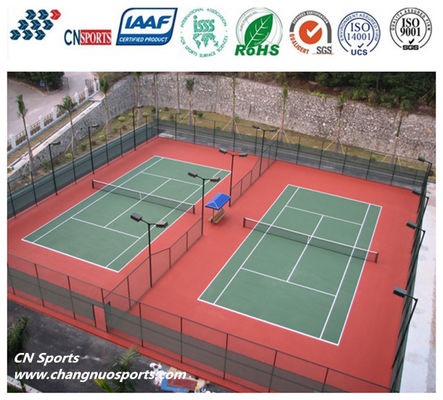

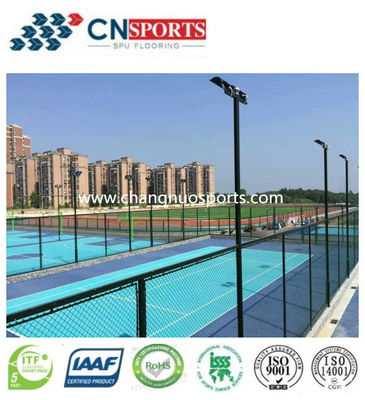

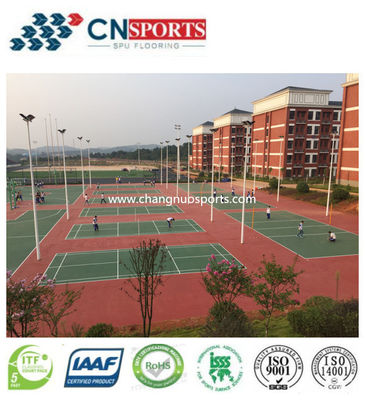

Project Case

CN-S01 Waterproof and High Rebound and Soundproof and level1 Flame Retardancy silicon PU Flooring 0





Research & Technical Team:

CN-S01 Waterproof and High Rebound and Soundproof and level1 Flame Retardancy silicon PU Flooring 1





Company Exbition Center:

CN-S01 Waterproof and High Rebound and Soundproof and level1 Flame Retardancy silicon PU Flooring 2







Company Brief Introduction:
We are first class one stop material supplier in China for high quality sports matrials,such as SPU course , running track , artificial grass, rubber particles and we are also engaging in the construction of sports venues.
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.







FAQ:
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.



2. Why we have to buy products from you?

we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.

3. Can we get installation support?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.



4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.
