1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound

  • 1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound
  • 1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound
  • 1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound
Place of Origin China
Brand Name CN Sports
Certification IAAF/ITF/RoHS/ISO140019001/ISO14001/ISSS
Model Number CN-S02
Minimum Order Quantity /
Price US$10-35/square meter
Packaging Details Pack in barrel/pallet
Delivery Time Within 15 work days after your deposit
Payment Terms L/C, T/T
Supply Ability 100000Tons per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicon Polyurea Application Outdoor School Stadiums And Gymnasiums
Warranty 5 Years Flame Retardancy Class 1
Tensile Strength 1.9mpa Water Resistance No Bubble And No Peeling And No Discoloration
Function Anti-seepage,waterproof And High Rebound ,anti-uv
Leave a Message
Product Description

1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound





Product Description

Jiangsu ChangNuo New Materials Co.,Ltd was founded in 2009.We are the one stop material supplier in China for high quality sport matrial,such as SPU court , running track , artificial grass, rubber particle and we're also engaging in the construction of sports venues.It is a high-tech enterprise integrating R&D, production and sales of new materials for sports venues.

What is SPU?

SPU sports flooring is made by silicon PU / silicon polyurethane materials. It has been implemented for the past 10 years and created a classic name for sports flooring. It is widely used for sports flooring and playground field, especially for outdoor fields.

It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer
combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt
substrates. The cushion layer is formed by single component modified polyurethane and top up with two
component modified acrylic resilience layer.



Detailed specification of product

Standard of Sports Performance

Item test project technical requirements test results
1 Shock absorption rate (%) Fr≥12 21
2 The springback value(%) ≥20 30
3 Sliding friction coefficient 0.4≤u≤0.7 0.53
4 Compression recovery rate(%) ≥95 97
5 Hardness(Shore A),20℃ 60-80 68



Environmental Performance Standard

Based on considerations of social environmental security responsibility

Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.

Standard Testing Result of SPU



Item test project technical requirements test results
1 Volatile organic compounds(VOC)(g/L) ≤670 91
2 benzene(%) ≤0.3 Did not check out
3 Toluene ＋xylene＋ ethyl benzene(%) ≤30 5
4 The free diisocyanate(TDI＋HDI)(%) ≤0.4 Did not check out
5 Halogenated hydrocarbon(%) ≤0.1 Did not check out
6



Soluble heavy metals(mg/kg)

 plumbum Pb ≤90 Did not check out
Cadmium Cd ≤75 Did not check out
chromium Cr ≤60 Did not check out
mercury Hg ≤60 Did not check out



Item test project technical requirements test results
1 Tensile elogation,% ≥400 1112
2 The tensile strength,Mpa ≥1.8 3.5
3 Artificial climate ageing resistance(300h) No bubbles, no peeling, no crack； pulverization≤grade 1,△E≤6.0 No bubbles, no peeling, no crack； pulverization＝grade 0,△E＝0.57
4 Wear resistance(750g/500r),g ≤0.050 0.031
5 Durability, aging experiment(168h) Tensile elongation,% ≥300 853
The tensile strength,Mpa ≥1.3 1.6
6



Resistance to water(168h)



 No bubbles, no peeling, allowing a slight color change,recovery after 2h No bubbles, no peeling, no discoloration
7 Flame retardant level I I






Excellent performance



1· More professional
Professional flexibility, excellent security protection.
High ductility, excellent wear resistance, decorative floor function
2· More environmental protection
High standards of environmental protection, indoor and outdoor can be laid
3· More beautiful
The original creation of sand color structure , break the bottleneck of “ red green and blue
4· Visual.More effective
Mixed function, active site "one place too many uses" is the "golden choice" for building;

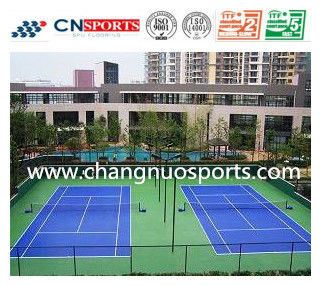

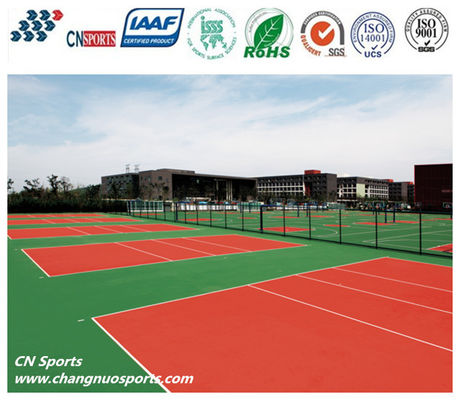

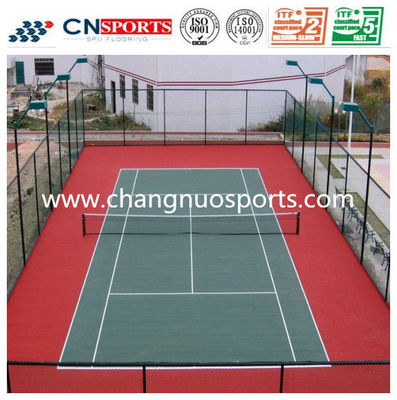

Project Case

1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound 0



Package

1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound 1

Product Line

1.9mpa Tensile Strength Silicon PU Tennis Flooring ,Anti-UV and High Rebound 2
