Indoor Synthetic Badminton Court Flooring Foam Elastic

Place of Origin China
Brand Name CN Sports
Certification IAAF / ITF/RoHS/iSSS/ISO140019001/ISO14001
Model Number CN-001
Minimum Order Quantity /
Price Inquiry
Packaging Details Pack in Pallet
Delivery Time Within 15 work days after your deposit
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PVC Floor, PVC Rubber Feature Safety Protection, Sound Reduce, Decorate
Thickness 4.5mm, 5mm, 6mm, 7mm,etc Color Red, Green, Blue, Etc
Surface Treatment Wear Resistant Usage Indoor Sporting Room
Installation Glue Down, Easy Install Application Basketball, Badminton, Volleyball, Futsal, Etc.
Pattern Lichi, Gem, Wooden, Etc Pack In Rolls, In Pallets
High Light

Green Synthetic Badminton Court Flooring

,

Synthetic Badminton Court Flooring

,

4.5mm pvc badminton court

Leave a Message
Product Description

Indoor Badminton Basketball Court Foam Elastic Plastic Rubber Mat PVC Sports Flooring

Product Description




Product Specification:

Thickness: 3.5mm, 4.5mm, 5mm, 6mm, 8mm, etc. Thickness can customize.

Raw material: PVC 100% new material

Size: Length: 20/15m and Width: 1.5m, 1.8m

Roll length:usually 15m-30m a roll or can customize according to your need

Package: with paper tube inside each roll, and waterproof kraft covered outside.





Features:

1) PVC Sports Plastic Floor is a well know flooring materials that is widely accepted in international games such badminton court, basketball court, table tennis court, volleyball court, tennis court, handball court etc competition field, It can also be used for all kinds of gym, dance room, school, activity room, multipurpose room, amusement park, kindergarten, office, etc places .

2) Comparing to hard flooring, PVC flooring has better safety, shock absorption and better rebound resilience. It’s Moderately curved surface and foam buffer layer provide users with the comfortability and safety they need.

3) It has an excellent Stability, good Shock-absorption & Impact-resistant Features. Side-prevention& Wear-Resistance. Many international indoor sports game competitions use PVC flooring.

4) It is made of 100% pure PVC new raw material. It does not contain methanal, without heavy metal and no formaldehyde, no DOP and can be recycled.It is also antibacterial and protect people from bacterial when playing on it.

5) Meet the entertainment and performance of different sports games. PVC Sports flooring of different thickness can absorb noise of 17-25 decibels.

6) Installation and maintenance cost is low, so with low initial cost, we can build a best space for sports and activities.





Product Parameters

Test Items

Test Method

Requirement Test Results Unit
Total Thickness EN 428 —— 4.5 mm
Length* Width EN 426 —— 20*1.8 m/m
Total Weight EN 430 —— 3.11 Kg/m2
Wear Layer Thickness EN 429 —— 0.45 mm
Abration EN ISO 5470-1 ≤1000 86 m/g
Identation Resistance Shore A 60-80 70 .
Shock Absortion DIN14808 ≥25%≤75%±5 28 %
Friction Coefficient EN13036-4 80-110 101 ——
Ball Bounce EN12235 90%±5 92 %



Advantages

1. special UV treatment is applied for the surface;Better wear
Resisting and antifouling performance.
2. thickness of double wear-resisting layers is added up to 1.5mm,wear-resisting and antiskid performance has been elevated to best level for sports after special surface treatment.
3. double braided glass mesh layers bring double effects and quality elevation. Extraction rate and deformation rate are both minimized to zero.
4. highly compact PVC foaming layer can enable better restoration performance and soft quality brings more safety.
5. over 10 year quality assurance on wear-resisting performance.
6. all kinds of colors and specifications for your choice.





Working conditions of PVC flooring installation

1. The ground should be clean, flat, sustaining dry, tough, no dust and dirt etc.

2. The ground flatness should be within 3 mm tolerance, tested by a 2 m straight ruler at any rotation alongside the ground. If not, ground treatment should be carried out in advance.

3. The indoor temperature is appropriate at least 15 degrees Celsius during construction.

4. Indoor air humidity requirements: should be between 20% -75%.





Installation methods of PVC flooring

Flooring should be tiled on the ground for more than 24 hours in advance, and the site temperature should be no less than 15 degrees Celsius. After restoration process, 5 cm more should be left as bonus during cutting.







Our advantages (Why choose us?)

1. Our products are odorless and non-toxic.

2. We have two main production bases and can make every kinds of SPU venues, running track, artificial grass, sports flooring construction and        colloidal particles.

3. We have more than 20 years' development and production history.

4. Exceed ten million squre meters every year in the world.





Our Mission:
We take "beautify the environment, protect the earth "as our mission, and belief of "integrating global resources, sharing human civilization ".





OUR TRAINNING AND SERVICES:

  • Provide construction guidance process text information
  • Provide construction process video
  • Can send person to our factory for training and studying
  • We can also arrange the engineer to the site for training and guidance
  • 24hours of telephone consultation service
  • Regular understanding the situation of the site usage



FAQ:

1. Is your products safe and enviroment friendly?
Yes, our products are safe and quality assured. It is Eco-friendly and harmless.



2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IFFF, IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.


3. Can we get installation support?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.



4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.

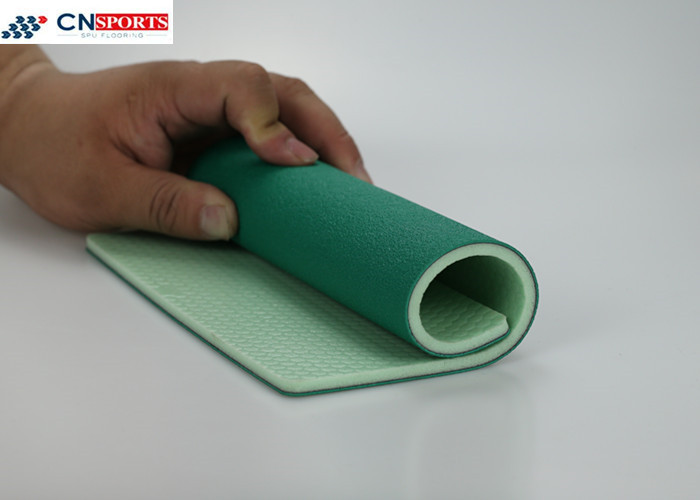

Indoor Synthetic Badminton Court Flooring Foam Elastic 1

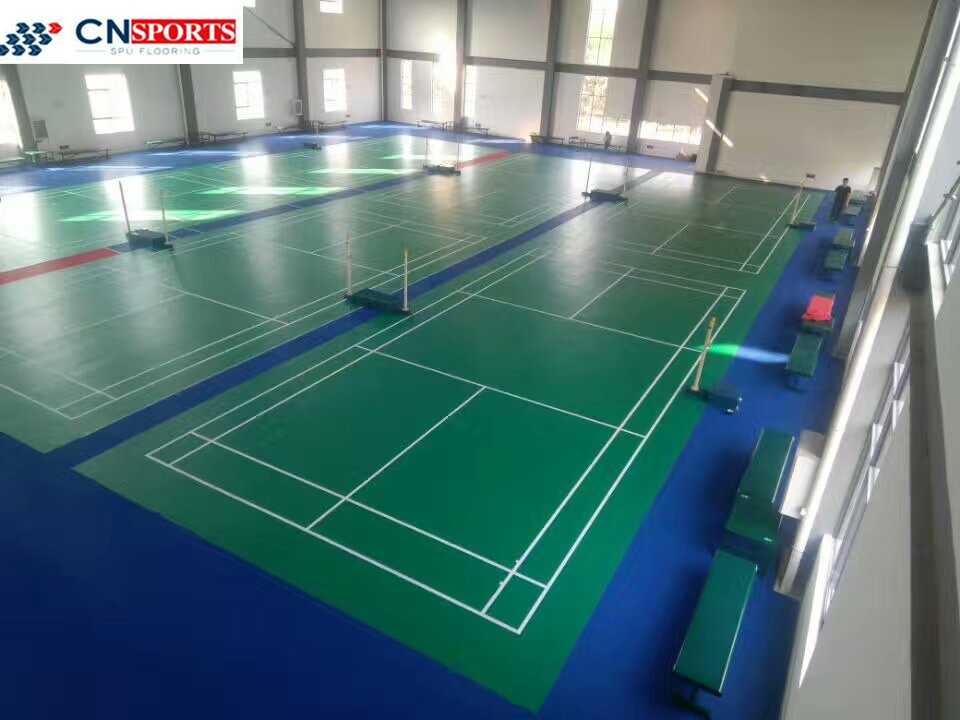

Indoor Synthetic Badminton Court Flooring Foam Elastic 2

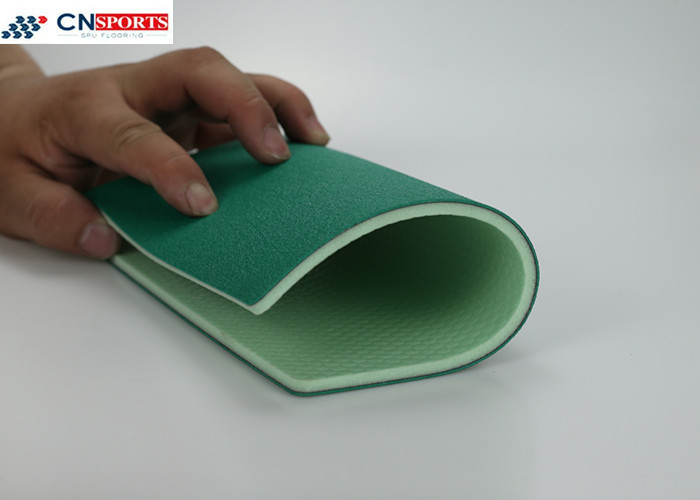

Indoor Synthetic Badminton Court Flooring Foam Elastic 3
