UV Resistance Colorful And Easy Construction Basketball Court Flooring For School
| Place of Origin | CHINA |
|---|---|
| Brand Name | CNSPORTS |
| Certification | RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG |
| Model Number | CN-S01 |
| Minimum Order Quantity | / |
| Price | US $8-20/ Square Meter |
| Packaging Details | Pack in barrel /pallet |
| Delivery Time | Within 15 work days after your deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 150000 tons Per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicion Polyurethane | Color | Green/red/blue/gray |
|---|---|---|---|
| Thickness | 3mm-10mm | The Springback Value | 30% |
| Sliding Friction Coefficient | 0.53 | Compression Recovery Rate | 97% |
| Tensile Elongation | 172% | The Tensile Strength | 1.5mpa |
| Vertical Deformation | 1.2mm | ||
| High Light | UV Resistance Basketball Court,Colorful SPU Basketball Court Flooring,School SPU Flooring |
||
Product Description
UV-Resistance Colorful And Easy Construction Basketball Court For School
Optional Colors
What is SPU?
Silicon pu (SPU) material is a pavement material for sports venues and facilities, which is made by thermally polymerizing silicone materials and modified materials of polyurethane materials. According to the modified material, the stain resistance, flexibility, wear resistance and recovery rate of the material are improved. In addition, it has excellent cushioning and plasticity, strong adhesion, automatic ground leveling, easy engineering construction, and aging resistance. After the construct in-site, the organic chemical properties are stable, and it is not easy to cause problems such as bubbles.
SPU sports flooring is made by silicon PU / silicon polyurethane materials. It has been implemented for the past 10 years and created a classic name for sports flooring. It is widely used for sports flooring and playground field, especially for outdoor fields.
Detailed specification of product
Standard of Sports Performance
| Item | test project | technical requirements | test results |
| 1 | Shock absorption rate (%) | Fr≥12 | 21 |
| 2 | The springback value(%) | ≥20 | 30 |
| 3 | Sliding friction coefficient | 0.4≤u≤0.7 | 0.53 |
| 4 | Compression recovery rate(%) | ≥95 | 97 |
| 5 | Hardness(Shore A),20℃ | 60-80 | 68 |
Environmental Performance Standard
Based on considerations of social environmental security responsibility
Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.
Standard Testing Result of SPU
| Item | test project | technical requirements | test results | |
| 1 | Volatile organic compounds(VOC)(g/L) | ≤670 | 91 | |
| 2 | benzene(%) | ≤0.3 | Did not check out | |
| 3 | Toluene ＋xylene＋ ethyl benzene(%) | ≤30 | 5 | |
| 4 | The free diisocyanate(TDI＋HDI)(%) | ≤0.4 | Did not check out | |
| 5 | Halogenated hydrocarbon(%) | ≤0.1 | Did not check out | |
| 6 |
Soluble heavy metals(mg/kg) |
plumbum Pb | ≤90 | Did not check out |
| Cadmium Cd | ≤75 | Did not check out | ||
| chromium Cr | ≤60 | Did not check out | ||
| mercury Hg | ≤60 | Did not check out | ||
Durable Performance Standard
Based on the owner or operator, construction and maintenance
Reflect the quality level of the site, and durable time limit
Technical data for SPU Sports Flooring
| Item | test project | technical requirements | test results | |
| 1 | Tensile elogation,% | ≥400 | 1112 | |
| 2 | The tensile strength,Mpa | ≥1.8 | 3.5 | |
| 3 | Artificial climate ageing resistance(300h) No bubbles, no peeling, no crack； | pulverization≤grade 1,△E≤6.0 | No bubbles, no peeling, no crack； pulverization＝grade 0,△E＝0.57 | |
| 4 | Wear resistance(750g/500r),g | ≤0.050 | 0.031 | |
| 5 | Durability, aging experiment(168h) | Tensile elongation,% | ≥300 | 853 |
| The tensile strength,Mpa | ≥1.3 | 1.6 | ||
| 6 |
Resistance to water(168h)
|
No bubbles, no peeling, allowing a slight color change,recovery after 2h | No bubbles, no peeling, no discoloration | |
| 7 | Flame retardant level | I | I | |
FAQ
1. What are the options base foundation of running track.?
The ground is based on asphalt or concrete.
2. Why we have to buy products from you?
we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.
3. Can we get installation support ?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.
4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.

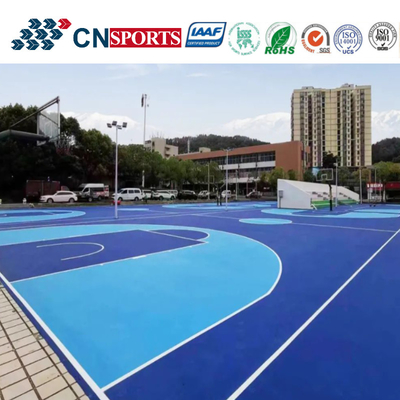

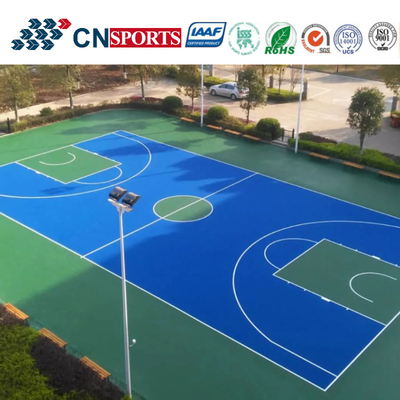

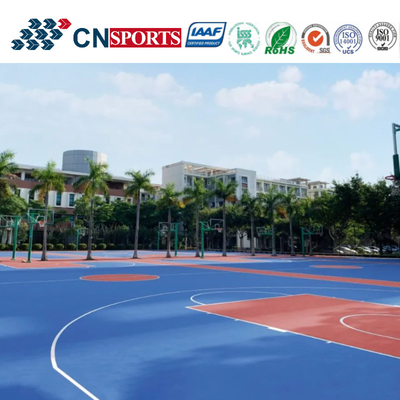

Picture for reference
